Description

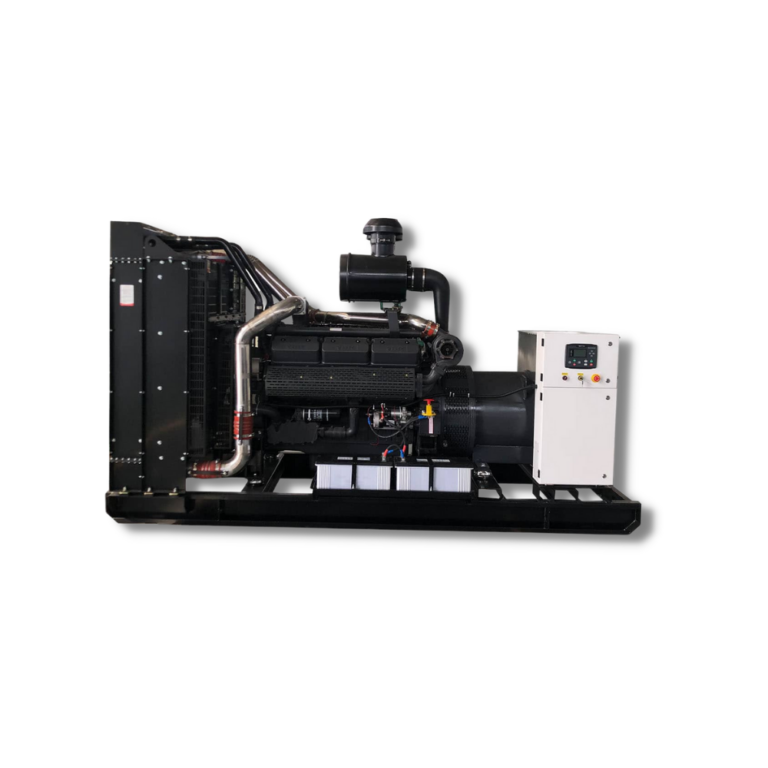

Shangchai SDEC series diesel engines, famous brand from China. applying advanced technologies, Shangchai SDEC also have widely service station around the world. which can provide great service for global customer.
Features:
1. International Warranty Service
2. Emission level : T2
3. Meet ISO9001& CE certification
4. Spare parts are easy to get from worldwide market
5. Coupled with Stamford, Marathon, Leroy somer alternator or China alternator
6. Load test including 50% load, 75% load, 100% load and 110% load
7. Warranty: One year or 1500 Working Hours from the shipment date, whichever comes first.
WDLSC series 50hz
| Model | Standby Power | Prime Power | Emission Level | Engine | Dimension | Weight | ||
|---|---|---|---|---|---|---|---|---|
| kVA | kWe | kVA | kWe | SDEC | mm | KG | ||
| WDLSC15 | 18 | 14 | 15 | 12 | T2 | 4Z2.3-G11 | 1335×600×1095 | 600 |
| WDLSC20 | 22 | 18 | 20 | 16 | T2 | 4Z2.7-G11 | 1455×600×1095 | 650 |
| WDLSC25 | 27 | 22 | 25 | 20 | T2 | 4Z3.0-G11 | 1455×600×1095 | 700 |
| WDLSC30 | 35 | 28 | 30 | 24 | T2 | 4Z3.2-G11 | 1500×600×1095 | 720 |
| WDLSC40 | 45 | 36 | 40 | 32 | T2 | 4ZT3.2-G11 | 1500×600×1095 | 740 |
| WDLSC50 | 55 | 44 | 50 | 40 | T2 | 4ZT3.5-G21 | 1600×600×1095 | 760 |
| WDLSC62 | 68 | 55 | 62 | 50 | T2 | 4ZT4.1-G21 | 1600×600×1095 | 760 |
| WDLSC80 | 93 | 75 | 80 | 64 | T2 | 4ZTAA4.1-G31 | 1600×600×1095 | 780 |
| WDLSC100 | 110 | 88 | 100 | 80 | T2 | SC4H140D2 | 1900x900x1170 | 1100 |
| WDLSC115 | 126.5 | 100 | 115 | 92 | T2 | SC4H160D2 | 1900x900x1170 | 1100 |
| WDLSC125 | 137.5 | 110 | 125 | 100 | T2 | SC4H180D2 | 1900x900x1170 | 1150 |
| WDLSC150 | 165 | 132 | 150 | 120 | T2 | SC7H205D2 | 2300x950x1380 | 1350 |
| WDLSC165 | 181.5 | 140 | 165 | 132 | T2 | SC7H220D2 | 2320x950x1380 | 1400 |
| WDLSC180 | 198 | 160 | 180 | 144 | T2 | SC7H250D2 | 2360x950x1380 | 1440 |
| WDLSC200 | 225 | 180 | 200 | 160 | T2 | SC8D280D2 | 2360x950x1380 | 1480 |
The 60HZ/1800rpm rating is available, pls contact us to achieve related models Specifications may change without prior notice. For more information pls contact us.
